MsQuareTech瑞昱/RTS语音芯片厂家 / 产品系列代码4位 |
|
|
| 芯片厂家名称 : MsQuare瑞昱 |
厂家英文名 ： RTS |
| 厂家简介：环 芯 |
相关其他: NATURAL SOUND EFFECT MELODY GENERATOR |
| RTS903 is a CMOS LSI designed for toys, doorb环芯ells, music boxes, and melody clocks timers.
|
|
| 厂家产品参考 : 产品系列识别码4位，更多详情咨询环芯销售人员，谢谢！ |
芯片厂家常见应用类别 : 常规类
，更多语音芯片厂家产品选型目录请进入！（部分资料来源于网络收录） |
| MsQuare瑞昱公司详细介绍和相关产品 : |

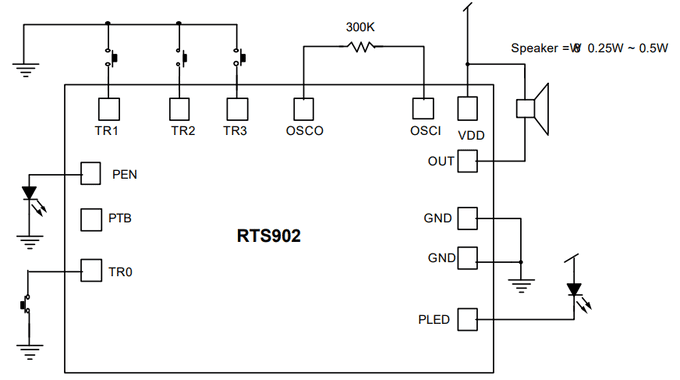

| RTS902 is a CMOS LSI designed for toys, doorbells and music boxes. It plays prprogrammed
melody and is capable of generating songs in piano effect by using the built-in
digital envelope circuit. By pushing the sequence trigger key, all songs can be played
sequentially with an Auto-Stop function. In addition, all songs can be placed in one of the
three regions and selected by pushing their corresponding direct-access keys providing the
Auto-S环 芯top function.
Song List RTS902-1: RTS902-4: 1. La Reine Deo Saba 1. Jingle Bells 2. For Elise 2. We Wish You a Merry Christmas 3. Music Box Dancer 3. Santa Claus is Coming to Town RTS902-2: RTS902-5: 1. Japanese Lullaby 1. London Bridge is Falling Down 2. Brahms' Lullaby 2. Mary Had a Little Lamb 3. Rockaby, Baby 3. Down the Mountain Side We Go RTS902-3: RTS902-6: 1. Ding-Dong 1. Love Me Tender Love Me True 2. Alarm Song 2. If You Love Me 3. For Elise 3. I Can’t Stop Loving You |
| MsQuare瑞昱公司英文介绍和产品 : |
RTS903 is a CMOS LSI designed for toys, doorbells, music boxes, and melody clocks timers.
It is designed to play pre programmed melody and is capable of enerating dual tone melody and natural sounds in piano effect. By pushing the sequence trigger key, all songs are sequentially selected and played with an Auto Stop function. In addition, RTS903 provides
PLED and PEN pins to drive LED and the motor. The blinking of LED is programmable to meet different user applications.
型 号 内 容 音乐 IC RTS902-1 双音三首情歌直推马达+2灯
RTS902-2 双音三首摇篮歌
RTS902-3 双音三首门铃声
RTS902-4 双音三首圣诞
RTS902-5 双音三首儿歌直推马达+2灯
RTS903-1 双音十二首圣诞
RTS903-2 双音十三首儿歌
RTS903-3 双音十二首圣诞
RTS903-5 双音六首情歌
RTS903-7 双音十二首圣诞
RTS903C-8 时钟打点
RTS903C-12 时钟打点
RTS2100B-1089 狗叫+绵羊叫
RTS2100B-1092 猫叫+母牛叫
RTS2100B-1094 鸟叫+鸡叫
RTS2100B-1095 青蛙叫+马叫
RTS2100B-1096 鸭叫+母鸡叫
RTS3100C-1001 HO!HO!HO!Merry Christmas+Happy Easter
RTS3100C-1002 爸爸+妈妈+娃娃笑+娃娃哭+音乐
RTS3100C-1003 打点+中文时钟报时
RTS3100C-1014 叮咚+时钟+MELODHY
|
| |
|
| MsQuare瑞昱更多公司中文描述 : |
RTS更多公司英文描述 : |
RTS903-1: Melody
1. Jingle Bell + White Christmas
2. Santa Claus is Coming to Town + We Wish You a Merry Christmas
3. The First Noel + Silent Night
4. Upon on the Housetop + Angels We Have Heard on Hight
5. It Came Upon the Midnight clear + Joy to the World
6. The Twelve Days of Christmas + Foggy the Snowman
7. Rudolph the Red-nosed Reindeer + Hark ! The Herald Angels Sing
8. O Christmas Tree + Deck the Halls
9. O Come All Ye Faithful + Silver Bells
RTS903-2: Melody
1. Hush Little Baby
2. Down the Mountainside We Go
3. Twinkle Twinkle Little Star
4. Home on the Range
5. The Fire Man
6. Spring is Coming
7. Oh! My Darling
8. Did You Ever See a Lassie
9. Rockaby Baby
10. Three Blind Mice
11. The farmer in the Dell
12. Bingo
RTS903-3: Melody RTS903-7: Melody
1. Angels |
Features
Operating Voltage range: 2.4V to 5.0V
Low power consumption
256note ROM memory
RC oscillator with an external resistor
1 sequence trigger key and 3 direct access keys are provided to select which song is to
be played.
Builtin onthechip envelope modulator
Directdrive speaker and programmable LED flash
Provided PEN pin for drive motor
Typical oscillator frequency: 128 KHz
PowerON Reset melody begins from the first note.
RTS903C-12:
1:00 Hush Little Baby + 1 Chime 13:00 Hush Little Baby + 1 Chime
2:00 Down the Mountainside We Go+ 2 Chimes 14:00 Down the Mountainside We Go + 2 Chimes
3:00 Twinkle Twinkle Little Star + 3 Chimes 15:00 Twinkle Twinkle Little Star + 3 Chimes
4:00 Home on the Range + 4 Chimes 16:00 Home on the Range + 4 Chimes
5:00 The Firn Man + |
| MsQuare瑞昱公司LOGO相关形象图 : |
RTS其他产品资料图: |
|
|
|
|
|
| 更多语音芯片开发资料。
语音芯片主要有：1，AC8040，AC8080语音OTP，AC8VC，AC8VM特价8脚芯片等。2，标准品，动物叫短秒数标准品，圣诞老公公，自然声产品，鬼叫灯音效产品等。3，裸片类IC（Dice），语音音乐标准品，各种开发掩膜芯片，裸片芯片可以封装到COB或者硬封装芯片。
|
|
|
|
| 与您携手，共创辉煌。 MsQuare瑞昱 RTS |
| |
