OTP20秒-AC8020 OTP语音芯片 产品资料
产品描述: 已停产
AC8020是一颗支持PWM和DAC输出的20秒的OTP语音芯片,音质效果好，共有四个I/O口,其中1个Input,3个简单I/O,简单I/O只能触发单段语音或用于马达和闪灯，外围仅需一颗104电容，产品方案成本极低.
AC8020已经被新款OTPG-AC9020所替代,请查看AC9020最新资料.
20秒OTP-AC8020语音芯片原理资料 DataSheetAC8020原理图下载 右键点击另存为
OTP-AC8020语音芯片按键接线资料 DataSheetAC8020按键接线原理图下载
OTP-AC8020语音芯片单片机接线资料 DataSheetAC8020单片机串行通信资料下载
产品优势：半 AT 导 Chip 体
1,
Otp-AC8020 内置电阻、外围没有元器件，外围电路只需要要104电容．
整个方案的费用给您节省30%－50% .
2, 工作电压2.4V—3.6V；输出方式：PWM＆DAC .(应用于5V方案时，需要加LDO降压芯片)
3, 当今市场唯一一款8Pin的DIP,SOP封装OTP语音芯片.AT@CHIP
4, 唯一一款可以烧录裸片出货的OTP语音芯片产品,不需光罩费,音质和单价市场最优.
5, 喇叭是8欧0.5W的,支持8欧阻值功率范围 :0.25W-1W的喇叭.
6, DAC输出时470欧1/2W的电阻接在8050的输入脚和VSS脚.
AC8020/3V供电接线图PWM直推喇叭-按键模式
AC8020/3V Stand-alone Mode PWM
|
AC8020/3V供电接线图DAC三极管/供放/推喇叭
AC8020/3V Stand-alone Mode DAC
|
AC8020_OTP20S 3V供电串行模式(serial Mode) 触发应用资料
AC8020 /3 V供电接线图PWM直推喇叭
AC8020 / 3V Serial Mode PWM
|
AC8020 /3 V供电接线图DAC三极管/供放/推喇叭
AC8020 / 3V Serial Mode DAC
|

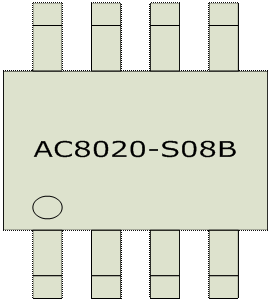

A C 8 0 2 0-OTP封装形式DIP8/SOP8
AC8020-DIP/SOP
|
PIN |
NAME |
1 |
TG2 |
2 |
TG1 |
3 |
TG11 |
4 |
TG12 |
5 |
VSS |
6 |
PWM2/DAC |
7 |
VDD |
8 |
PWM1 |
|
PIN Descriptions
PIN NAME |
I/O |
Function |
TG1 |
INPUT |
Key Stand-alone Trigger Mode : TG1 is used to trigger the maximum 32 Voice Group one by one sequentially. |
|
|
Serial Trigger Mode : TG1 is used to trigger the maximum 64 Voice Group. |
|
|
CPU Command Mode : TG1 is used as Data Input Pin (CS). |
|
|
|
TG2 |
INPUT |
Key Stand-alone Trigger Mode : TG2 is used to trigger the maximum 21 Voice Group one by one sequentially. |
|
|
Serial Trigger Mode : TG2 is used to trigger the maximum 64 Voice Group |
|
|
CPU Command Mode : TG2 is used as Clock Pin (CLK). |
|
|
|
TG11 |
INPUT |
Key Stand-alone Trigger Mode : TG11 is used trigger Only One Group. |
|
|
CPU Command Mode : TG11 is used as Data Input Pin (DIO1). |
|
OUTPUT |
As Output PIN , Output the BUSY or Flash Signal . |
|
|
|
TG12 |
INPUT |
Key Stand-alone Trigger Mode : TG12 is used trigger Only One Group. |
|
|
CPU Command Mode . TG12 is used as Selected Pin (DIO2). |
|
OUTPUT |
As Output PIN , Output the BUSY or Flash Signal. |
|
|
|
PWM1 |
OUTPUT |
As a PWM PIN , can Directly drive the Speaker . |
|
|
|
PWM2 |
OUTPUT |
As a PWM PIN , can Directly drive the Speaker . |
|
|
As a DAC PIN , 8 bit D/A Current Output. |
|
|
|
VDD |
INPUT |
Power Supply PIN , @ 2.4~3.6 V Working Voltage. |
|
|
|
VSS |
INPUT |
Connected to Ground. |
出货形式：
dip、 SOP、COB（可为积压盒专用）、裸片（已烧录好）。 其中裸片一块Wafer可以同时烧录4款不同的产品，直接绑定生产，大大地节约生产时间, dip、 SOP、COB 1天交货，裸片5-7天交货。
DataSheet原理图下载
相关产品：AC8040-OTP40秒 AC8080-OTPH80秒 AC8010-OTP10秒(已被9010替代) TF020
最新产品: AC9020-OTP20秒 AC9080-OTP80Sec秒 AC9010-OTP10秒
新产品系列OTP语音芯片全面支持4.5V和3V,为您提供最加稳定的语音输出.
